CSS grid-auto-columns

The CSS grid-auto-columns property specifies the line names and track sizing functions of a grid's implicitly created columns.

If your browser supports CSS grids, the above example should look like this:

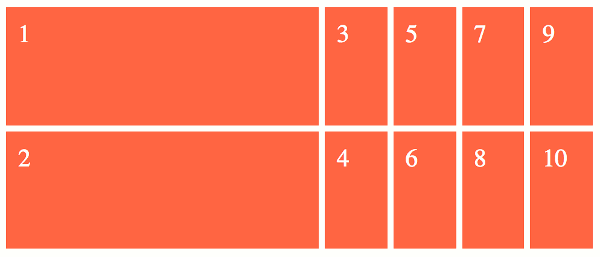

Screenshot of a grid using the 'grid-auto-columns' property.

The grid-auto-columns property only deals with columns that are created implicitly. These are the columns that haven't been explicitly sized with the grid-template-columns property.

If we examine the code from the above example:

We can see that only the first column was explicitly sized with the grid-template-column property. The other four columns were created implicitly, and therefore they are sized according to the grid-auto-columns property.

The result is that the first column is 50vh and the other columns are 10vh.

Note that we used grid-auto-flow: column to specify that any extra grid items flow over to columns. If we didn't specify this, they would've flowed over to extra rows instead of columns (because rows is the intial value of the grid-auto-flow property).

Multiple Values

The grid-auto-columns property accepts multiple values. Here's an example:

Syntax

Here's the official syntax of the grid-auto-columns property:

Where

Possible Values

length-percentage

This can be a non-negative length or percentage value.

Percentage values are relative to the inline size of the grid container in column grid tracks, and the block size of the grid container in row grid tracks. If the size of the grid container depends on the size of its tracks, then the percentage value is treated as auto.

flex

This is a non-negative dimension with the unit fr specifying the track's flex factor. The fr unit represents a fraction of the free space in the grid container. Each flex-sized track takes a share of the remaining space in proportion to its flex factor.

max-content

Represents the largest max-content contribution of the grid items occupying the grid track.

min-content

Represents the largest min-content contribution of the grid items occupying the grid track.

minmax(min, max)

Defines a size range greater than or equal to min and less than or equal to max.

auto

As a maximum, this is identical to max-content. As a minimum, represents the largest minimum size (as specified by min-width/min-height) of the grid items occupying the grid track.

fit-content( length-percentage )

Represents the formula min(max-content, max(auto, argument)), which is calculated similar to auto (i.e. minmax(auto, max-content)), except that the track size is clamped at argument if it is greater than the auto minimum.

In addition, all CSS properties also accept the following CSS-wide keyword values as the sole component of their property value:

initial
Represents the value specified as the property's initial value.
inherit
Represents the computed value of the property on the element's parent.
unset
This value acts as either inherit or initial, depending on whether the property is inherited or not. In other words, it sets all properties to their parent value if they are inheritable or to their initial value if not inheritable.

Basic Property Information

Initial Value
auto
Applies To
Grid containers
Inherited?
No
Media
Visual
Animation type
Discrete (see example)

CSS Specifications

Browser Support

The following table provided by Caniuse.com shows the level of browser support for this feature.

Vendor Prefixes

For maximum browser compatibility many web developers add browser-specific properties by using extensions such as -webkit- for Safari, Google Chrome, and Opera (newer versions), -ms- for Internet Explorer, -moz- for Firefox, -o- for older versions of Opera etc. As with any CSS property, if a browser doesn't support a proprietary extension, it will simply ignore it.

This practice is not recommended by the W3C, however in many cases, the only way you can test a property is to include the CSS extension that is compatible with your browser.

The major browser manufacturers generally strive to adhere to the W3C specifications, and when they support a non-prefixed property, they typically remove the prefixed version. Also, W3C advises vendors to remove their prefixes for properties that reach Candidate Recommendation status.

Many developers use Autoprefixer, which is a postprocessor for CSS. Autoprefixer automatically adds vendor prefixes to your CSS so that you don't need to. It also removes old, unnecessary prefixes from your CSS.

You can also use Autoprefixer with preprocessors such as Less and Sass.
