CSS @left-bottom At-Rule
@left-bottom at-rule is used to style the left-bottom page-margin box in paged media.

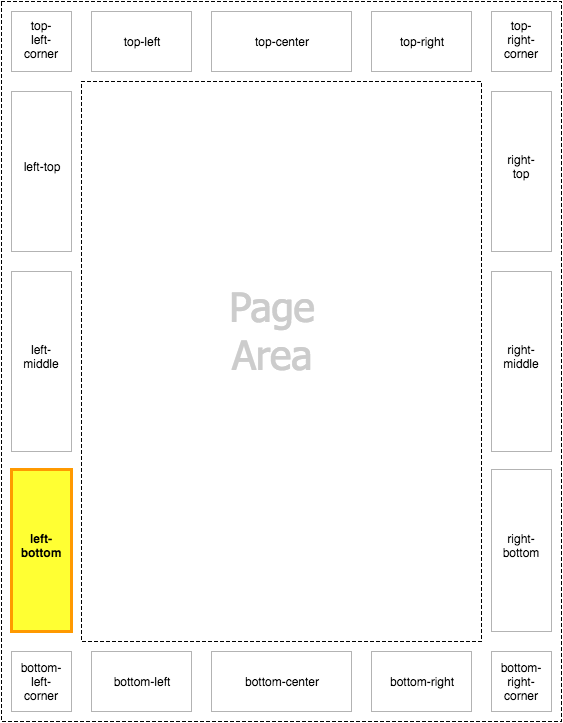

The left-bottom page-margin box is a variable-height box filling the left page margin between the left-middle and bottom-left-corner page-margin boxes.
@left-bottom rule is one of 16 margin at-rules that can be used inside the
@page at-rule when working with paged media (e.g. printed paper, transparencies, photo albums, a browser's "Print Preview" function).
The margin at-rules are responsible for styling the 16 page-margin boxes inside the page context. These page-margin boxes allow you to add generated content and styles around the outside of the page box. This can be useful for generating headers and footers that contain the document title, page numbers, etc.
@left-bottom at-rule allows you to apply styles and generated content specifically to the left-bottom page-margin box.
Each page-margin box has its own margin, border, padding and content areas. You can adjust these properties as required.
Here's the official syntax for the
What this means is that it accepts a list of normal CSS declarations inserted between curly brackets (just like any other CSS declaration).
However, there are some properties that can't be used with
@left-bottom (or any other margin at-rule). Margin at-rules can only accept page-margin properties.
Here's a basic code example:
This example first sets the page size and margin for the page context. It then uses the
@left-bottom rule to identify the page-margin box at the left bottom, and generate the page number, preceded by the text "Page ".
Notice that the
@left-bottom rule is nested inside the
@page rule. This is because margin-at rules go inside the page context (which is created by the
@page at-rule). The page-margin boxes are themselves said to be in the margin context.
Also notice that the
@left-bottom rule follows the declarations in the page context. This is recommended to ensure that legacy clients handle the declarations correctly.
It doesn't matter whether you're printing a page in landscape or portrait orientation. The page-margin boxes are independent of page orientation.
left-bottom is in the same position in both portrait and landscape orientation.
By default, the alignment on the
left-bottom page-margin box is set to:
However, you can use the
vertical-align properties to change this if required.
Not all CSS properties will work on page-margin boxes, but there is a large list of properties that can be used on any page-margin box.
Supported properties include properties for specifying backgrounds, colors, alignment, generated content, text direction, and more.
Here's a list of page-margin properties that are applicable to page-margin boxes.
@left-bottomat-rule is defined in CSS Paged Media Module Level 3 (W3C Editor's Draft).
