Access 2016: Create a Form

Access 2016 provides many options that make it easy to create forms.

One thing that separates Access (and other desktop database systems) from most client/server database management systems (DBMSs), is the ability to create forms. Most client/server systems require you to use separate tools to build forms. With Access, you can create forms straight from within your database.

In Access 2016, you have the option of creating a blank form from scratch, using the Form Wizard, or having Access automatically create a form from a table or query.

Create a Form from a Table

Let's see how quickly we can get a form up and running. We'll create a form based on the Albums table that we created previously.

This will allow users to enter data into the table via the form.

  1. Screenshot of the Form button highlighted.

    Create the Form

    Select the table in the left menu that you want to use for the form (in our case, the Albums table) and click Form from the Create tab on the Ribbon.

  2. Screenshot of the newly created Form.

    The Form

    Access immediately creates a form based on the selected table.

    The form displays all fields as label/field pairs.

    • The label allows users to see which field is which.
    • The field is presented in an editable form element such as a text box, combo box, etc. The user can then edit the underlying data using the form elements.

    Close the left navigation pane (using the « icon) so that there's more room to display the form.

Form Views

There are three different views for working with forms:

  • Design View
  • Layout View
  • Form View

When you first create a form from a table, Access opens it in Layout View. You can customize the form however you like. You can switch between views as often as you like while customizing your form.

Switching views can be done by using the View button on the Ribbon, or the three icons at the bottom right of the Access window.

Here's an explanation of each view.

  • Screenshot of the Form in Design View.

    Design View

    Design View provides a more detailed view of the form's structure than Layout View.

    Design View also allows you to modify the form without having any data getting in the way.

    Most tasks can be done in either Design View or Layout View, but there are some form properties that can only be changed in Design View.

  • Screenshot of the Form in Layout View.

    Layout View

    Layout View provides a more visual layout for editing the form. It bears a close resemblance to the actual form that the user will see.

    Layout View allows you to edit the form properties while it has real data.

    As mentioned, there are some things that can't be done in Layout View. In some cases, Access will tell you that you need to switch to Design View if you want to make a certain change.

  • Screenshot of the Form in Layout View.

    Form View

    Form View is how the user will see the form. You can't edit the form's properties, but you can use the form just as a user would.

The Form Tabs

When you edit a form in either Layout View or Design View, three tabs appear on the Ribbon with specific options for editing forms.

Here's an overview of these tabs.

  • Screenshot of the Form.

    The Design Tab

    You can use the Design tab to change the color of the form, change fonts, or change the whole theme.

    You can also upload a logo, add/edit a title, add the date and time, etc.

    The Design tab also allows you to add form controls such as buttons, text input, combo box, etc.

  • Screenshot of the Form.

    The Arrange Tab

    You can use the Arrange tab on the Ribbon to arrange individual elements. Select the element/s and click an option to re-arrange them.

    For example, you can move a field under the field beneath it by using the Move Down option. You can also set padding, margins, add arbitrary spaces, etc.

  • Screenshot of the Form.

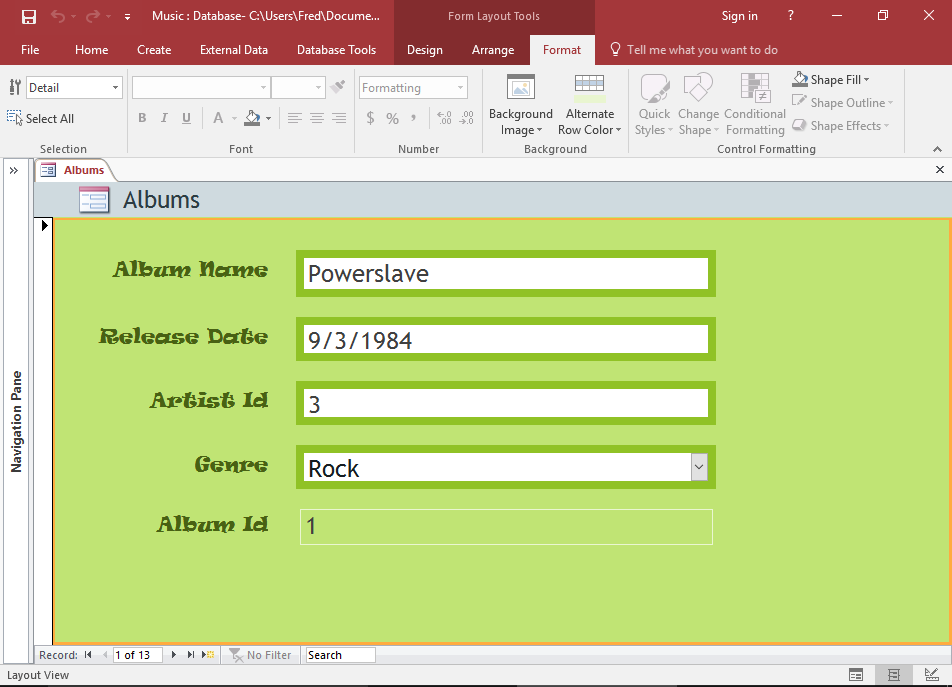

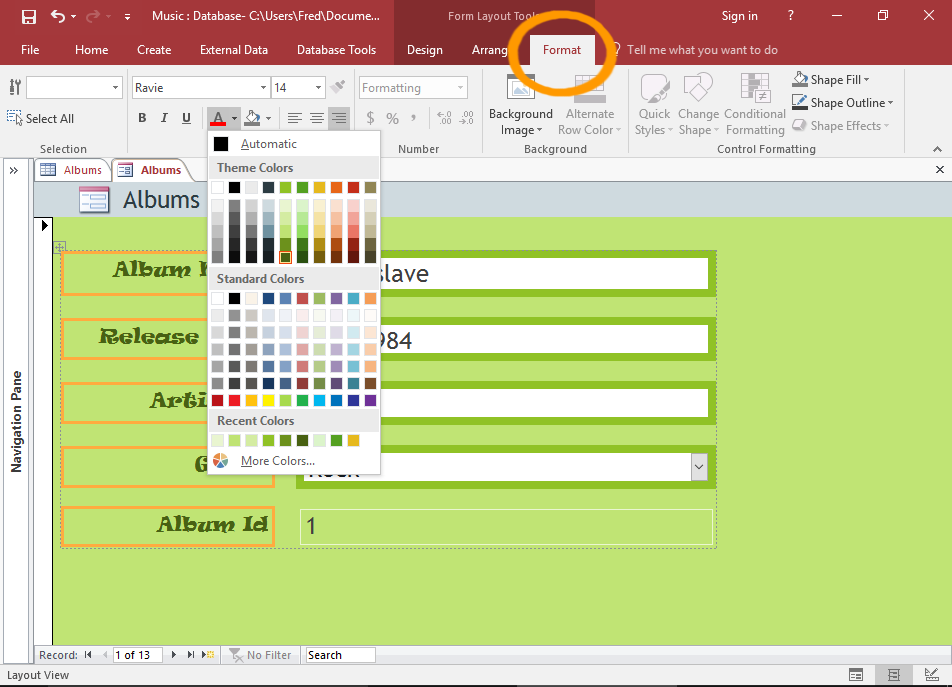

    The Format Tab

    You can use the Format tab on the Ribbon to format individual elements.

    To style an individual element, simply select the element and apply a style.

    Select multiple labels or fields by holding down the Shift key while selecting them.

Form Properties

Access provides the Property Sheet for setting properties against a form and its elements. Here's an overview.

  • Screenshot of the Form.

    The Property Sheet

    You can use the Property Sheet to apply settings to individual elements, or the whole form. There are many different properties that can be applied across a form. These aren't just limited to formatting properties, they include data validation properties, event based properties, and more.

    The Property Sheet displays properties for the selected element. When you select another element, the properties in the Property Sheet will update to reflect the properties for that element.

    To open the Property Sheet, click Property Sheet from the Design tab in the Ribbon.

    You can also open the Property Sheet by right-clicking on an element and selecting Properties from the contextual menu.

  • Screenshot of the Form.

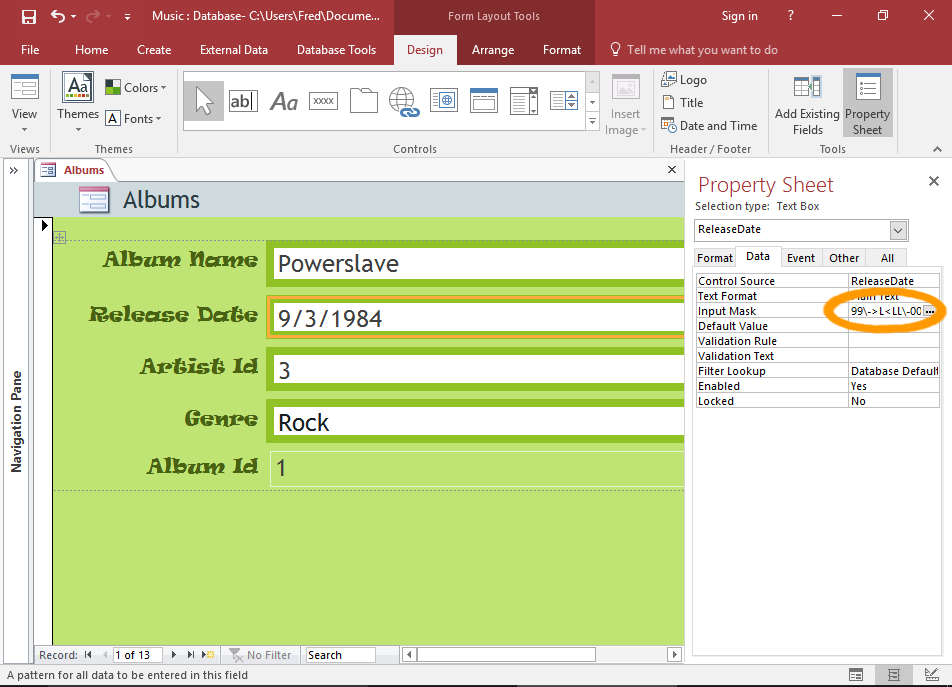

    The Date Picker vs The Input Mask

    You can use the Property Sheet to set a date picker for date fields. In fact, Access automatically sets date fields to use a date picker, so in many cases, you won't need to do anything.

    However, if you have set an input mask (like we did previously), the date picker won't be shown on the form. In Access, you can't use a date picker on a field that has an input mask applied.

    So, if you want to use a date picker, you'll need to remove the input mask. You can do this via the Property Sheet. The Input Mask is under the Data tab.

    Removing the input mask on the form doesn't remove it on the table field. If you find yourself changing data rules on a form, you might want to consider whether it's better to change/remove it on the table instead. You can do this by opening the table in Design View and adjusting the property.

Go ahead and change some colors, fonts, etc. Next we will replace the ArtistId field with a combo box containing artists' names.
