CSS circle() Function
circle() function is a CSS basic shape value that's part of the CSS Shapes module.
Basic shapes such as
circle() can be used as a value for properties such as
shape-outside to control the flow of content around the element, and
clip-path to clip the element's contents to the basic shape.
This means you can do things like, have text flowing around the element in the shape of a circle, have an image clipped to the shape of a circle, etc.
Here's an example of how the
circle() function works with the
Here we have a
div floated to the left. Now, because I've applied
shape-outside: circle() to it, the subsequent text flows around the (invisible) circle that I specified.
It's easier to visualize this concept by looking at the following example.
As you can see, the circle is drawn within the floated box. The floated box actually protrudes out from the circle, into the surrounding text. But because we've applied
shape-outside: circle(), the text is allowed to flow right up to the edges of the circle. The extent to which it does this depends on any argument that you pass to the
This example doesn't use any arguments to specify the circle's radius. Therefore, it uses the default value (which is
How to Specify the Circle's Radius
You can specify the radius of the circle by passing an argument to the
circle() function. As mentioned,

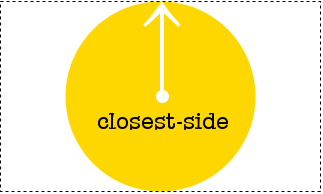

closest-side is the default value. Here's how it works:
The circle's radius will be based on the length from the center of the shape to the closest side of the reference box.
You can also specify

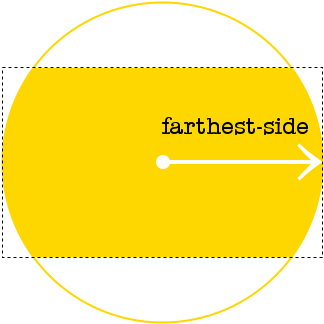

farthest-side, which is calculated like this:
In this case, the circle will base its radius on the length from the center of the shape to the farthest side of the reference box.
You can also use length values (such as
vw, etc) and percentage values to specify the circle's radius.
Here's an example of using a percentage value.
How to Position the Circle
You can specify a position for the circle by following the radius argument with a valid CSS position. This position specifies the circle's center. Just separate the radius and the position with
at. Like this:
shape-outside: circle(100px at 10px 150px);
The center of this circle is 10 pixels from the left and 150 pixels from the top.
Here's a working example:
Position can be represented as a length value, a percentage value, or a combination of the
Here's an example of using the CSS
circle() function with the
If your browser supports the
clip-path property (and the
circle() function), the above image should appear in the shape of a circle. Otherwise it will appear as a normal rectangle shape.
At the time of writing, browser support for the
clip-path property is limited. None of the major browsers support it, however, webkit browsers have partial support using the
The official syntax of the
circle() function is as follows:
circle() = circle( [<shape-radius>]? [at <position>]? )
And the syntax of
<shape-radius> = <length> | <percentage> | closest-side | farthest-side
The default value is
The syntax for
<position> = [ [ left | center | right | top | bottom | <length-percentage> ] | [ left | center | right | <length-percentage> ] [ top | center | bottom | <length-percentage> ] | [ center | [ left | right ] <length-percentage>? ] && [ center | [ top | bottom ] <length-percentage>? ] ]
If only one value is specified, the second value is assumed to be
center. If two values are given, a length or percentage as the first value represents the horizontal position (or offset) and a length or percentage as the second value represents the vertical position (or offset).
The following values can be used to specify the circle's radiius:
This can be specified in either of the following ways:
- Specifies a length value to use (e.g.
vw, etc) for the radius.
- Specifies a percentage value to use. The percentage value uses the width and height of the reference box.
This is the default value.
Specifies that the circle's radius will use the length from the center of the shape to the closest side of the box that uses the
Specifies that the circle's radius will use the length from the center of the shape to the farthest side of the reference box.
The position argument defines the center of the circle. It is specified as a value from the top, left corner of the reference box using the values listed above (under Official Syntax).
circle()function is defined in CSS Shapes Module Level 1 (W3C Candidate Recommendation, 20 March 2014)
- It's also being further defined in CSS Shapes Module Level 2 (Editorâ€™s Draft)
The following table provided by Caniuse.com shows the level of browser support for this feature.
